Premium Coolant Controller:
measuring, dosing, mixing
filling, monitoring & reporting
Will-Fill is a compact add-on device that measures, fills, conditions and reports on your metalworking fluid automatically — so your team stops checking tanks and starts machining.
- Virtually no deviation in coolant concentration
- Up to 42% reduction of cutting oil consumption (concentrate)
- Increased technical availability of your process
- Zero time spent manually managing metalworking fluid
What is Will-Fill?
A unique, patented add-on for trouble-free coolant management
Will-Fill is an automatic add-on device for metalworking and CNC machines that manages your metalworking fluid (coolant/emulsion) from a single compact unit installed directly on the machine's tank. It combines automatic measurement and analysis with faultless filling, permanent conditioning, and timely reporting.
Because every component is linked to a high-performance control unit, Will-Fill regulates and adjusts coolant level and coolant quality automatically — or alerts your team the moment it can't.
Why Will-Fill
The numbers behind the ROI
Figures reported by Will-Fill customers in precision-manufacturing installations.
concentration bandwidth of coolant
of customers double the lifetime of the coolant — less downtime and disposal cost
of customers consume 42% less emulsion on average — record is 74%
tool life reached through ideal lubrication and cooling conditions
time spent topping up and measuring fluid by hand

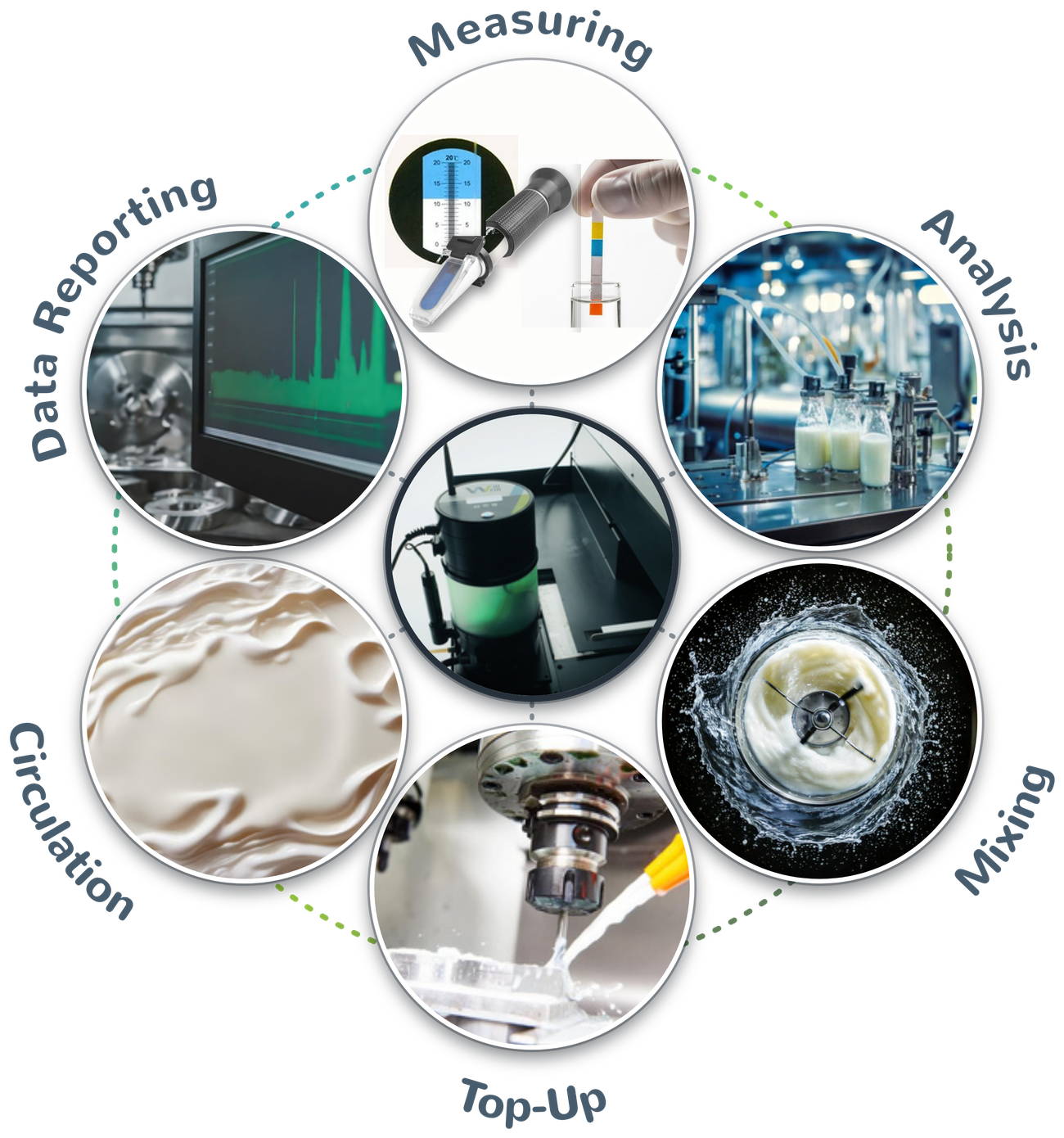

How does it work?
Six functions, one autonomous cycle
Every Will-Fill device runs the same reliable cycle, whether it's controlling a single machine or a whole cell.
Measuring
Depending on configuration, Will-Fill measures up to 12 parameters — from level and concentration to water pressure and dosing-pump speed — always the same way, for near-zero measurement error.
Analysis
Firmware interprets every reading from the built-in and connected sensors, then sends a notification, calculates the filling parameters (volume & concentration), delays a refill, or adjusts a PID control as needed.
Mixing
Based on the measurement and consequent analysis on the integrated PC, Will-Fill autonomously performs a filling with the exact oil/water ratio required to hold your specified concentration.
Top-Up
Manual intervention is reduced to an absolute minimum. When Will-Fill needs your attention, you're notified by a flashing LED, a buzzer, or an e-mail. All measurement data is converted into graphs for easy spotting of trends and follow-up.
Circulation
Circulation means that Will-Fill periodically re-mixes and aerates the emulsion, prolonging the coolant lifetime. During the filling, however, it means mechanically blending new oil and water into the existing mix for a homogeneous result — even with fluids that are hard to mix.
Data Reporting
Every measurement is logged, giving you the full process history for consumption checks, quality control and standards compliance — locally or on the Will-Fill dashboard. A variety of options is available, each catering to the IT security requirements on site.
Our products
DDx and AIO
Will-Fill DDx is a fully autonomous device, adapted to fit a large range of setups that all share a single denominator: high-precision. Whether it's a single machine or several machines, each with their own unit, Will-Fill DDx brings stability to the process through precise dosing of water and oil.
For a fully centralized multi-tank cell, Will-Fill AIO supplies up to six machine tanks from one feeding point. The convenience of a single point of concentrate storage and water connection is combined with distribution of the correct mixture for each machine individually.
DDx
Installs directly on a machine's tank for fully autonomous filling, monitoring and conditioning — built for high-precision dosing, on a single machine or several.
Learn more about DDx →AIO
The centralized system for large-scale operations — up to six tanks from one feed. Individual measurement and dosing of each machine, central follow-up of entire system.
Learn more about AIO →Plug and play
Fits your existing installation — no rebuild required
Will-Fill integrates with an existing or new installation and can be started up in a (semi-)full coolant tank. Our technicians are on-site for commissioning, so every setting is correctly configured from day one.

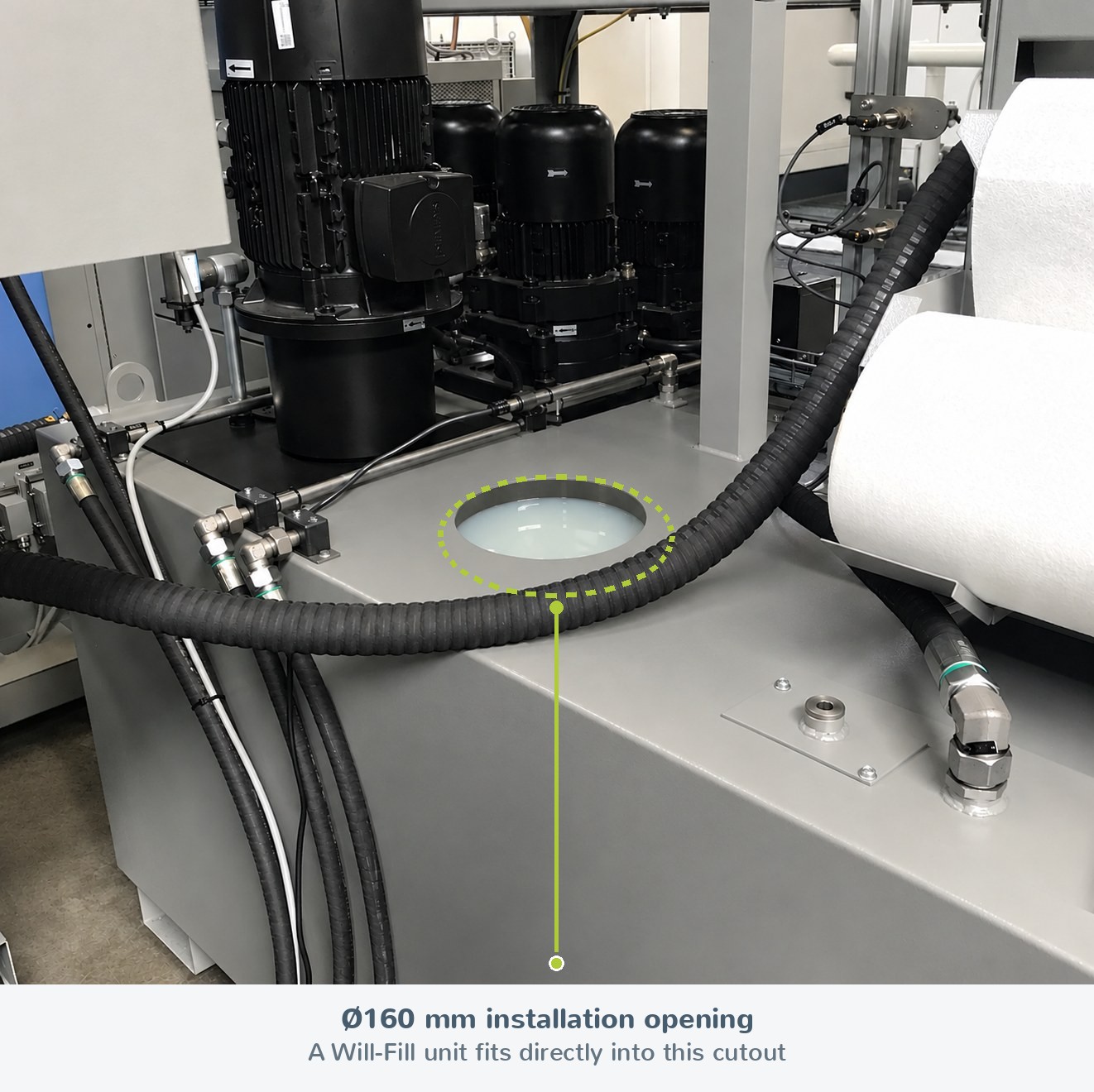

- Installation openingMax. 160 mm round hole
- Upper structure footprint200 × 200 × 500 mm (L×W×H)
- SetupTechnicians on-site for commissioning
- NotificationLED, buzzer & e-mail alerts
Who is using Will-Fill
Trusted in Aerospace, Semicon & other Precision Manufacturing Processes
Will-Fill devices are installed at machine shops and OEMs worldwide, including these companies.
Frequently asked questions
Straight answers about Will-Fill
What is Will-Fill?
Will-Fill is an automatic add-on device for metalworking and CNC machines that manages metalworking fluid (coolant/emulsion) from a single compact unit installed directly on the machine's tank. It continuously measures up to 12 fluid values, automatically tops up and conditions the emulsion to the correct oil/water ratio, and reports on fluid health.
What's the difference between DDx and AIO?
DDx is a fully autonomous device installed on a machine's tank, adapted to fit a single machine or several machines each with their own unit. AIO is the centralized system: one feeding point supplies up to six machine tanks with active circulation and real-time alerts.
How much can Will-Fill reduce coolant consumption?
82% of Will-Fill customers report consuming 42% less metalworking fluid on average, with a recorded best case of 74% less. 63% of customers double the lifetime of the coolant.
Ready to stop managing coolant by hand?
Talk to an expert about the right Will-Fill configuration for your machines — or request a quote today.
